MIL-PRF-14516G
FRONT VIEW
8.5 inches high
overall
BASE PLATE
0.5 inches high
5.25 inch diameter
TOP VIEW
14.25 inch diameter

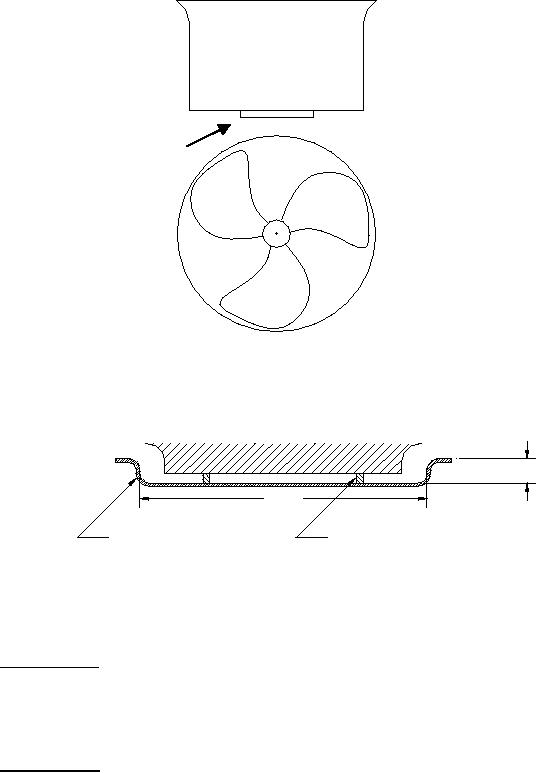

FIGURE 1. Thermo-Electric Fan
THERMOELECTRIC FAN
0.50"
5.75"
Indented Location
Spacer (approximate)
(section of standard steel pipe, 2 1/2" nominal O.D.
on Heater Surface
by .07" wall thickness and .20" high, welded to
heater surface)
FIGURE 2. TEF interface location and typical spacer.
3.6.2 Fuel interface. During test of 4.5.2 the heater shall operate on DF2 conforming to A-
A-52557. During test of 4.5.3, the heater shall operate on JP8 conforming to MIL-DTL-83133.
During all operational tests herein, the fuel can used for the fuel supply shall conform to MIL-C-
53109.
3.6.3 Tent interface. The heaters shall be compatible for operation in the General Purpose
Medium tent, MIL-T-1712.
7
